Measuring Range (XY): 250x160 mm-315x315 mm
Measuring Height (Z): 160-250 mm
Vertex Automated Vision Measuring Machine is widely used in industries as Aerospace, Military, Connector, Electronics and O-ring etc.
Touch Probe and Laser can be added on the vision measuring machine to construct multisensory measuring system and finish the measurement of some special dimensions.
Measuring Range (XY): 420x520 mm-660x700 mm
Measuring Height (Z): 160-400 mm
Excel 500/700 Automated Vision Measuring Machine, is widely used in industries as PCB, Mobile Phone, O-Ring, Gasket, Automobile etc.
Touch Probe, Laser and Rotary can be added on the vision measuring machine to construct multisensory measuring system and finish the measurement of some special dimensions.
Measuring Range (XY): 750x900 mm-1600x2560 mm
Measuring Height (Z): 160-400 mm
Excel 1050/1600/1650/200/250 Automated Vision Measuring Machine, is widely used in industries as Aerospace, PCB, Machining, Sheet Metal etc.
Can add Touch Probe, Laser and Rotary on the vision measuring machine to construct multisensory measuring system.
Field of View (Low Mag)/Depth of Field: 69.3x49.6 mm/30 mm
Field of View (High Mag)/Depth of Field: 17.3x12.4 mm/3 mm
With one simple click, the system provides all the measurements including distance, radii, diameter, angle, straightness, roundness, giving intuitive OK/NG feedback directly on front touch panel, permitting accurate and objective quality control on production pieces.
High level metrology software in the industry.
All models of Vertex and Excel are installed with InSpec software.
Measure Dimensions of Grooves or Side Holes.

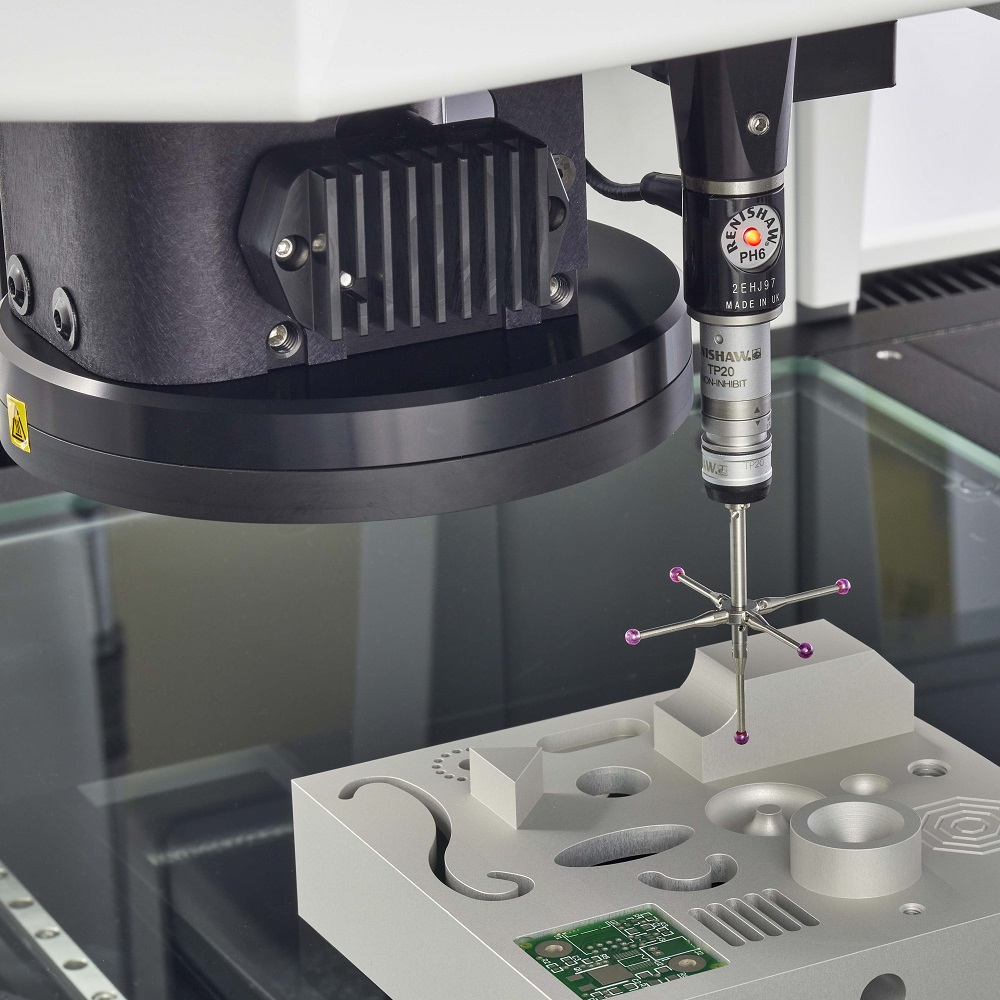

Touch Probe can be optionally added to Micro-Vu vision measuring machine to construct a multi-sensor measurement system to complete measurement of some special sizes.
Precise Quality Control Via Optical Inspection
Single-point Compact Optical Sensor
The measurement of wafer in the field of semiconductor and generally microelectronics.
The measurement and online control of mechanical or optical parts.
The measurement and control of glass or plastic film thickness.
RSD-60 rotary indexer is an angle positioning device, which is closely integrated with the measurement software. It can rotate the measuring piece accurately, then the camera can observe multiple surfaces and measure the shaft in a rotating manner (W axis). No additional setting is required, reducing operation time.
With more than 60 years of experience in the software development, FormFit 2D Best Fit Software developed by Micro-Vu is designed to be easy to use, providing functions as Fitting, Editing, Analyzing and Reporting etc. It connects with InSpec Metrology Software, compares the data automatically after measurement and exports report.
Functions:
1. Whole/Partial Deviation Analysis
2. GD&T Analysis as True Position etc.
3. Profile Calculation
4. Connect with InSpec to Export Inspection Report
Geomagic Control is a professional metrology software, which can integrate with Micro-Vu high precision vision measuring machine in order to perform editing, CAD comparison and GD&T on the inspecting piece.
Application fields:
1. Data scanning, CAD alignment and comparison.
2. 3D dimension deviation analysis, geomatic tolerance calculation.
3. Interactive 3D model report.
4. Process automation from alignment to reporting.
The surface light is produced with a ring of LEDs around the lens.
Directional Light from 27° to 75°.
Macro Ring Light: 5 rings, 8 sectors, 40 segments.
Long and short working distances
One robot arm can be equipped with multiple sets of Micro-Vu vision measuring machines, to realize automatic loading and unloading operation.
The robot arm realizes the automatic operation of loading and unloading of the measuring machine through TCP/IP communication.
One robot arm can be equipped with multiple sets of Micro-Vu vision measuring machines.
Automatic loading and unloading.
Automatic loading and unloading to the measuring machine.
Automatic measurement. The system calls the measurement program and completes the measurement automatically.
The system judges the measuring piece as NG or OK according to the measuring result, and places the piece in the designated position.
Statistical Processing Control Software with Self-definition Report Output.
It is operating with Microsoft Excel.
Find your way among more than 20 models.
Measuring Range (LXD): 300x40 mm-1250x180 mm
The modular range of the Techno series can provide the most suitable machine for your production.
The combination of optical and tactile functions results in a complete measuring control for turned parts.
MTP 170 measuring range: 170x300 mm
MTP 170L measuring range: 170x380 mm
MTP is a machine designed to measure big-sized flat elements, offering maximum accuracy in quality control.
Its easy-to-use system and speed consent considerable reduction in terms of time and costs with accurate control and measurement of 100% of the production.
MTP is able to inspect multiple parts in one cycle, carrying out direct measurement and DXF profile comparison at the same time.
Measuring Range: 95x65 mm/23x23 mm.
2 models: METRIOS, METRIOS HD.
METRIOS: High resolution for small and medium components.
METRIOS HD: Highest resolution of the range. Capture the smallest detail on micro-components.
Measuring Range: 265x200 mm/70x70 mm.
2 models: METRIOS CROSS, METRIOS HD CROSS.
METRIOS CROSS: Sliding stage along X and Y axis, wide working area and high resolution across the entire field of view.
METRIOS HD CROSS: Highest resolution of the range. Sliding stage along X and Y axis.
